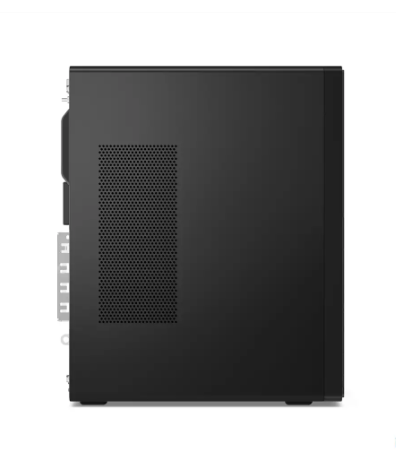

ThinkCentre M70t Gen 4 TWR, i5-13400, 8GB RAM, 512 SSD, WF+BT, None, 1Yr_12DL000JVA

Integrated Intel® UHD Graphics 730

Intel® Q670 Chipset

1x 8GB UDIMM DDR4-3200

Four DDR4 DIMM slots, dual-channel capable

Up to 128GB DDR4-3200

512 GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB each • 3.5" HDD up to 2TB • M.2 SSD up to 2TB

High Definition (HD) Audio, Realtek® ALC897Q-CG codec

2Wx1

260W 90%

USB Calliope Keyboard, Black, English

USB Calliope Mouse, Black

None

• One PCIe® 4.0 x16, full-height, length ≤ 209mm, height ≤ 117.5mm
• Two PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
• Two M.2 slots (one for WLAN, one for SSD)

Black

Tower (13.6L)

145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)

Around 5.9 kg (13.0 lbs)

Integrated 100/1000M

Intel® Wi-Fi® 6 AX201, 11ax 2x2 + BT5.1

• 1x USB-C® 3.2 Gen 1 (15W charging)
• 2x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

• 4x USB 2.0
• 1x HDMI® 2.1 TMDS
• 2x DisplayPort™ 1.4
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

Discrete TPM 2.0, TCG certified

No fingerprint reader

• Kensington® Security Slot™, 3 x 7 mm
• Padlock Loop

Non-vPro®

1-year, Onsite

1Y Premier Support Upgrade from 1Y Onsite

• ErP Lot 3
• TCO Certified 9.0
• RoHS compliant

• TÜV Rheinland® Low Noise
• TÜV Rheinland® Ultra Low Noise

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)

None

None
