Máy chủ HPE DL380 G10+ S4314/ Ram 32G/ PS 800W/ MR416i-p/ NC 8SFF/ Svr_P55247-B21
Tốc độ CPU: Intel Xeon 4314 2.4GHz Dung lượng ổ cứng: Tùy chọn Bộ nhớ RAM: 32GB DDR4 Network (RJ-45): BCM57412 10Gb 2-port SFP+ OCP3 Raid: MegaRAID MR416i-p Nguồn: 1x 800W Kiểu dáng: Rack
Tình trạng: Còn hàng
Thương hiệu: HPE
Loại sản phẩm: Máy chủ
Liên hệ
Kiểu dáng
| Thương hiệu | HPE |
| Bảo hành | HPE 4 Year Tech Care Basic Proliant DL380 Gen10+ Service (starting from the date of manufacture) |
| Thông tin chung | |
| Tổng quan | HPE ProLiant DL380 Gen10 Plus 8SFF NC |
| Cấu hình chi tiết | |
| Bộ vi xử lý | Intel Xeon-Silver 4314 (16-Core, 2.4 GHz, 135W) |
| Up to two 3rd Generation Intel Xeon Scalable processors, 16 to 40 cores per processor | |
| Chipset | Intel C621A Chipset |
| Bộ nhớ chính (RAM) | 1x HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
| 32 DDR4 DIMM slots, 16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel Maximum capacity (LRDIMM) 8.0 TB, Maximum capacity (RDIMM) 2.0 TB , Maximum capacity (Intel Optane Persistent Memory for HPE) 8.0 TB | |
| Ổ đĩa (HDD/SSD) | HPE DL38X Gen10 8 SFF Front Cage Removal FIO Option |
| 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD, 2 M.2 SATA SSD standard on primary riser, depending on configuration, 8 SFF mid-tray optional, 6 SFF rear drive optional or 4 LFF mid tray optional, 3 LFF rear-drive optional and 2 SFF or 2 Dual UFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model | |
| Card Raid/ Hỗ trợ | MR416i-p/4GB with Smart Storage Battery |
| Tùy chọn: | |
| HPE SR932i-p and/or HPE SR416i-a and/or HPE MR216i-a and/or HPE MR416i-a and/or HPE MR216ip and/or HPE MR416i-p and/or HPE Smart Array P816i-a SR and/or HPE Smart Array E208i-a SR and/or HPE Smart Array P408i-a SR and/or HPE Smart Array E208i-p SR and/or HPE Smart Array E208e-p SR and/or HPE Smart Array P408e-p SR and/or HPE Smart Array P408i-p SR | |
| Ổ Quang (ODD) | Optional DVD-ROM Optional via Universal Media Bay External support only |
| Nguồn | 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies up to HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit (Available in 96% efficiency) | |
| Làm mát hệ thống | 4x Standard Fans up to 6x Maximum Performance Fans hot swap |
| Card đồ họa | Integrated Matrox G200 |
| GPU Options: Up to 2x A100 80GB, or 8x A2 16GB or 8x Tesla T4 16GB | |
| Khe cắm mở rộng | Primary Riser, Secondary Riser, Tertiary Riser up to 8 PCIe Gen4 slots x16 |
| Card Mạng | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE |
| No embedded networking | |

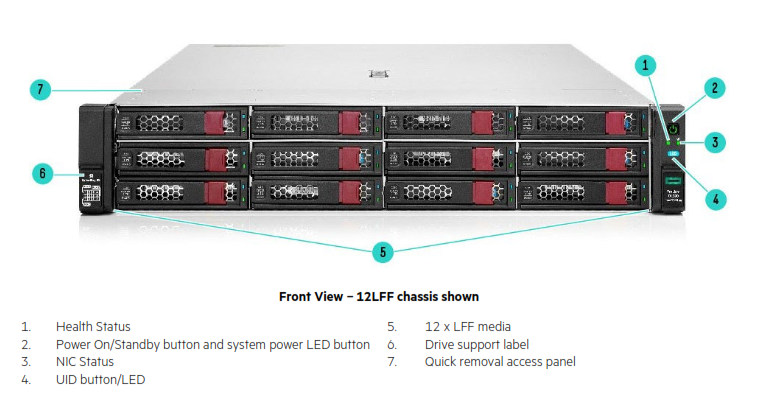

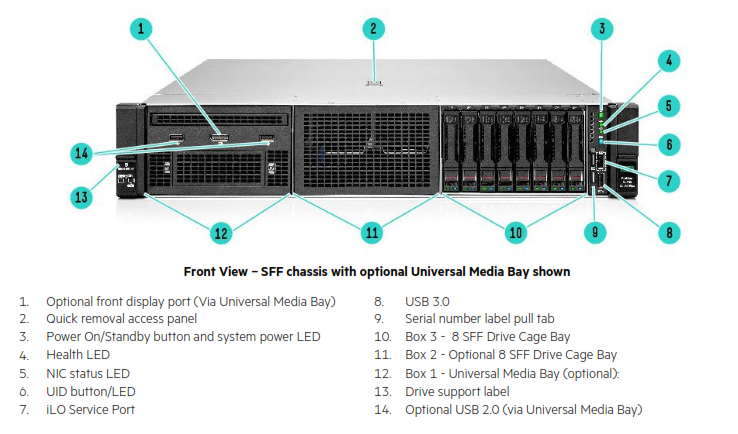

| Cổng kết nối | Front Ports |
| 1 optional front display port via Universal Media Bay | |
| 1 iLO Service Port ( Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required) | |
| 1 USB 3.0, 2 optional USB 2.0 via Universal Media Bay | |

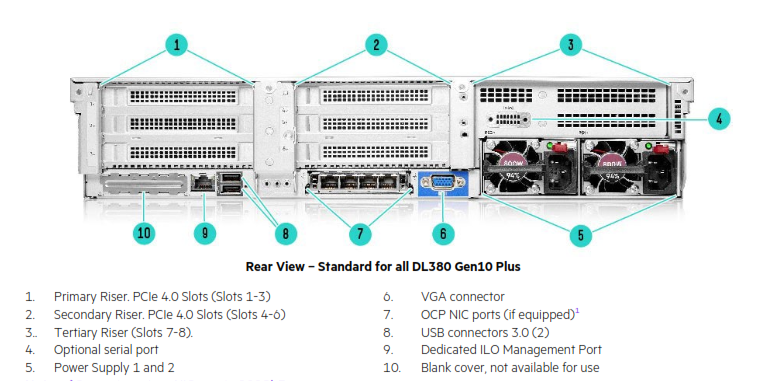

| Rear Port | |
| 1 Gb HPE iLO Remote Management Network Port | |
| 2 USB 3.0 | |
| 1 VGA | |
| Optional: 1 Serial | |
| Internal Ports | |
| 2 USB 3.0 | |
| Quản lý hệ thống | HPE Integrated Lights-Out (HPE iLO) |
| Intelligent Provisioning | |
| iLO RESTful API | |
| RESTful Interface Tool | |
| Scripting Tools | |
| HPE OneView Standard | |
| HPE Systems Insight Manager (HPE SIM) | |
| Tùy chọn: HPE iLO Advanced HPE GreenLake for Compute Ops Management HPE OneView Advanced HPE InfoSight for Servers HPE Insight Cluster Management Utility (CMU) | |
| Bảo mật | UEFI Secure Boot and Secure Start support |
| Tamper-free updates – components digitally signed and verified | |
| Immutable Silicon Root of Trust | |
| Ability to rollback firmware | |
| FIPS 140-2 validation | |
| Secure erase of NAND/User data | |
| Common Criteria certification | |
| TPM (Trusted Platform Module) 1.2 option | |
| Configurable for PCI DSS compliance | |
| TPM (Trusted Platform Module) 2.0 option | |
| Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser | |
| Bezel Locking Kit option | |
| Support for Commercial National Security Algorithms (CNSA) | |
| Chassis Intrusion detection option | |
| Secure Recovery – recover critical firmware to known good state on detection of compromised firmware | |
| Kích thước / trọng lượng | 2U rack |
| SFF Drives: 8.75 x 44.54 x 71. cm | |
| LFF Drives: 8.75 x 44.54 x 74.9 cm | |
| Depth: 758.3 mm (29.85 inches) - without bezel / 772.14 mm (30.39 inches) - with bezel | |
| Weight: Maximum: 8 SFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed) 16.12kg ~ 28.77kg 12 LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed) 22.48kg ~ 33.99kg | |
| Operating Systems and Virtualization Software | − Microsoft Windows Server |
| − VMware ESXi | |
| − Red Hat Enterprise Linux (RHEL) | |
| − SUSE Linux Enterprise Server (SLES) | |
| − Canonical Ubuntu | |
| − Oracle Linux and Oracle VM | |
| − Citrix | |
| Thông tin khác | |
