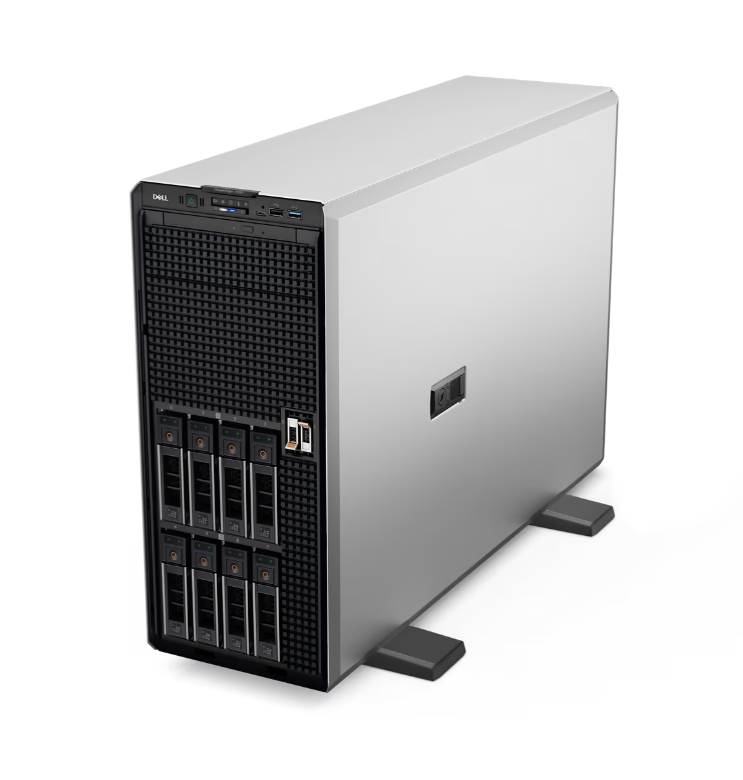

Máy chủ Dell PowerEdge T550 Chassis 8 x 3.5"/ H755/ Silver 4310 2.1G (12C/24T)/ 16GB/ 2TB
Tốc độ CPU: Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) Dung lượng ổ cứng: 2TB NLSAS Bộ nhớ RAM: 16GB DDR4 Ổ đĩa quang: DVD+/-RW Network (RJ-45): 2 x 1GbE LOM Raid: PERC H755 Nguồn: 1400W PSU (1/2) Kiểu dáng: Tower
Tình trạng: Đặt hàng
Thương hiệu: Dell
Loại sản phẩm: Máy chủ
Liên hệ
Kiểu dáng
| Thương hiệu | DELL |
| Bảo hành | ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s) |
| Thông tin chung | |
| Tổng quan | Dell PowerEdge T550 Chassis 8 x 3.5" |
| Cấu hình chi tiết | |
| Bộ vi xử lý | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 Up to two 3rd Generation Intel Xeon Scalable processors with up to 36 cores per processor |
| Bộ nhớ chính (RAM) | 1x 16GB RDIMM, 3200MT/s, Dual Rank |
| 16 DDR4 DIMM slots, supports RDIMM 2 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only | |
| Ổ đĩa (HDD/SSD) | 1x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hard Drive |
| Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB | |
| Supported Drives - SAS, SATA and NVMe | |
| Card Raid/ Hỗ trợ | Internal controllers: Front PERC H755 Rear Load |
| HBA345, PERC H345, PERC H355, PERC H745, S150, H755N, HBA355i | |
| • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB | |
| • External PERC (RAID): PERC H840 | |
| • External HBAs (non-RAID): HBA355e | |
| Ổ Quang (ODD) | DVD+/-RW, SATA |
| Nguồn | 1x 1400 W Platinum AC/100–240 V |
| Hot swap power supplies with full redundancy option: Supports Platinum 600 W AC/DC, Titanium 700 W AC/DC, Platinum 800 W AC/DC, 1100 W AC/DC, 1400 W AC/DC,Titanium1800 W AC/DC and 2400 W AC/DC power supplies. | |
| Làm mát hệ thống | Air cooling |
| Standard (STD) fans/High performance (HPR) silver fans | |
| Up to eight hot swap fans | |
| Card đồ họa | Integrated Matrox G200 |
| Up to two double wide 300 W NVIDIA A40, or five single wide 70 W NVIDIA T4 accelerators | |
| Khe cắm mở rộng | Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot |
| Card Mạng | 2 x 1GbE LOM Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0 |

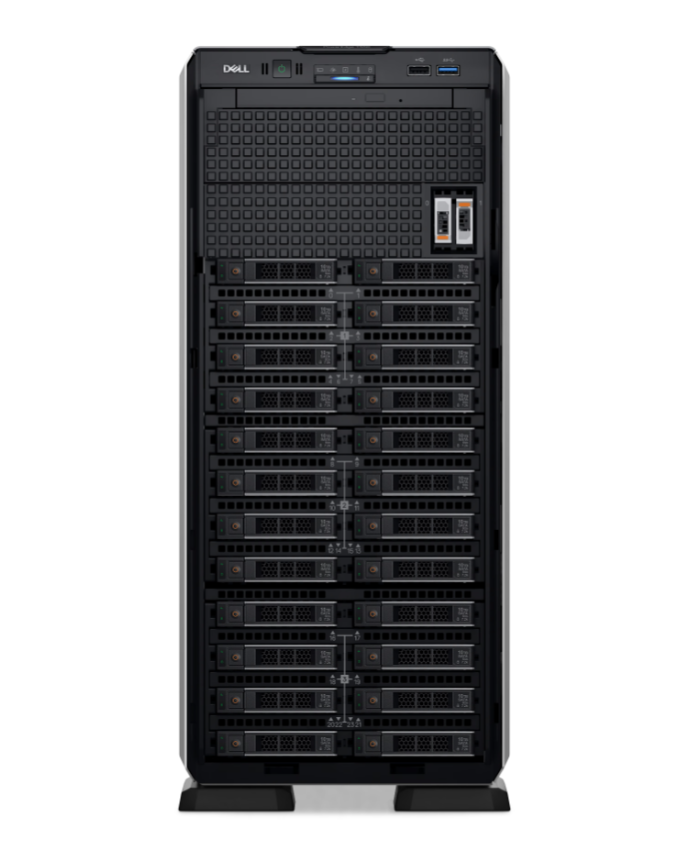

| Cổng kết nối | Front Ports |
| • 1 x iDRAC Direct (Micro-AB USB) port (optional) | |
| • 1 x USB 2.0 | |
| • 1 x USB 3.0 | |

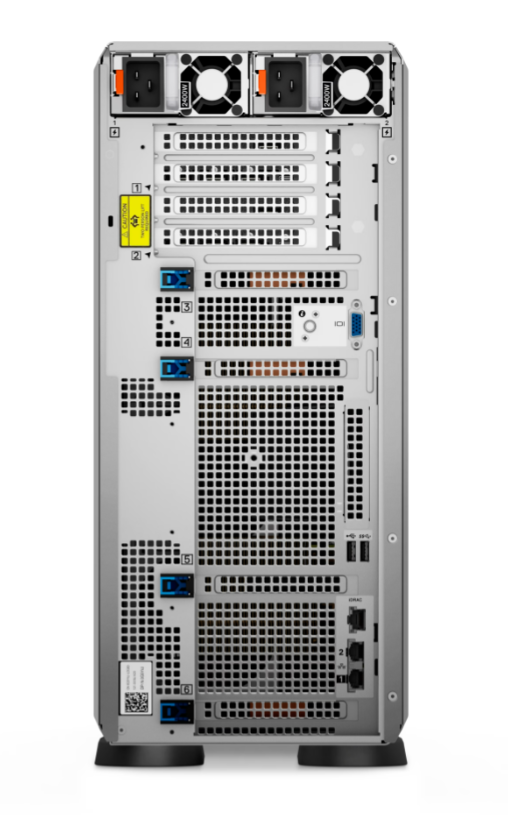

| Rear Ports | |
| • 1 x USB 2.0 | |
| • 1 x iDRAC Direct (Micro-AB USB) port | |
| • 1 x Serial (optional) | |
| • 1 x USB 3.0 | |
| • 2 x Ethernet | |
| • 1 x VGA | |
| Internal Ports | |
| • 1 x USB 3.0 (optional) | |
| Quản lý hệ thống | iDRAC9 |
| iDRAC Direct | |
| iDRAC Service Module | |
| iDRAC RESTful with Redfish | |
| Quick Sync 2 wireless module | |
| OpenManage Software | OpenManage Enterprise |
| OpenManage Power Manager plugin | |
| OpenManage SupportAssist plugin | |
| OpenManage Update Manager plugin | |
| OpenManage Mobile | |
| OpenManage Integrations: | |
| • BMC Truesight | |
| • Microsoft System Center | |
| • Red Hat Ansible Modules | |
| • VMware vCenter and vRealize Operations Manager | |
| OpenManage Connections: | |
| • IBM Tivoli Netcool/OMNIbus | |
| • IBM Tivoli Network Manager IP Edition | |
| • Micro Focus Operations Manager | |
| • Nagios Core | |
| • Nagios XI | |
| Bảo mật | Cryptographically signed firmware |
| Secure Boot | |
| Secure Erase | |
| Silicon Root of Trust | |
| System Lockdown (requires iDRAC9 Enterprise or Datacenter) | |
| TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Kích thước / trọng lượng | 5U Tower |
| Height: 459.0 mm (18.07 inches) | |
| Width: 200.0 mm (7.87 inches) | |
| Depth: 680.5 mm (26.79 inches) with bezel 663.5 mm (28.12 inches) without bezel | |
| Weight: 8 x 3.5-inch + 8 x 2.5-inch NVMe ~ 44.48 kg (98.06 pound) 24 x 2.5-inch SAS/SATA ~ 44.1 kg (97.22 pound) | |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS |
| Citrix Hypervisor | |
| Microsoft Windows Server with Hyper-V | |
| Red Hat Enterprise Linux | |
| SUSE Linux Enterprise Server | |
| VMware ESXi | |
| Thông tin khác | |
