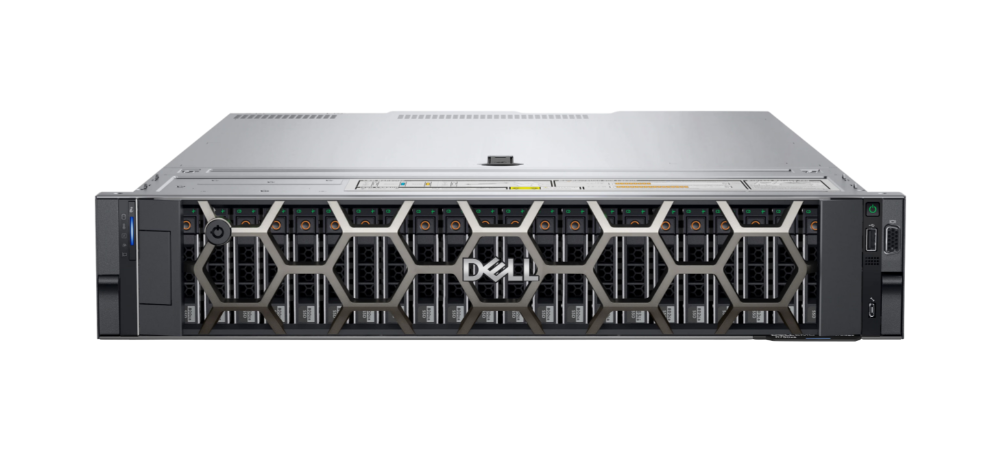

Máy chủ Dell PowerEdge R750xs Chassis 8 x 3.5"/ H755/ Silver 4310 2.1G, 12C/24T/ 16GB/ 2TB
Tốc độ CPU: Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) Dung lượng ổ cứng: 2TB NLSAS Bộ nhớ RAM: 16GB DDR4 Ổ đĩa quang: DVD+/-RW Network (RJ-45): 2 x 1GbE LOM Raid: PERC H755 Adapter Nguồn: Dual 800W PSU (2/2) Kiểu dáng: Rack
Tình trạng: Đặt hàng
Thương hiệu: Dell
Loại sản phẩm: Máy chủ
Liên hệ
Kiểu dáng
| Thương hiệu | DELL |
| Bảo hành | ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s) |
| Thông tin chung | |
| Tổng quan | Dell PowerEdge R750xs Chassis 8 x 3.5" |
| Cấu hình chi tiết | |
| Bộ vi xử lý | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor | |
| Bộ nhớ chính (RAM) | 1x 16GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8 |
| 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 3200 MT/s | |
| Ổ đĩa (HDD/SSD) | 1x 2TB 7.2K RPM NLSAS ISE 12Gbps 512n 3.5in Hard Drive |
| Front bays: Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB | |
| Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB | |
| Card Raid/ Hỗ trợ | Internal controllers: PERC H755 |
| PERC H345, PERC 355, PERC H745, PERC H755N, HBA355i, S150 | |
| • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2x M.2 SSDs or USB | |
| • External PERC (RAID): PERC H840 | |
| • External HBA (non-RAID) HBA355e | |
| Ổ Quang (ODD) | DVD+/-RW |
| Nguồn | 2x 800W Platinum 100-240 VAC |
| Hot swap power supplies with full redundancy option | |
| Làm mát hệ thống | Air cooling |
| • Standard fans/High performance Silver fans/High performance Gold fans | |
| • Up to six hot swap fans | |
| Card đồ họa | Integrated Matrox G200 |
| GPU Options: Not supported | |

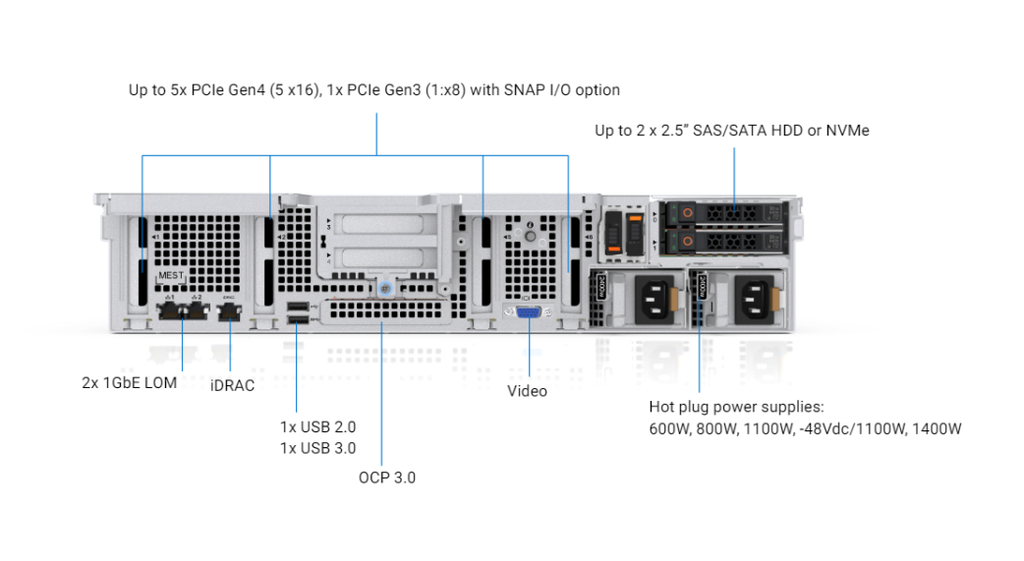

| Khe cắm mở rộng | Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots • 3 x16 Gen4 low profile • 2 x16 Gen4 low profile (optional) • 1 x8 Gen3 (x4 lane) low profile |
| Card Mạng | 2 x 1GbE LOM 1 x OCP 3.0 |

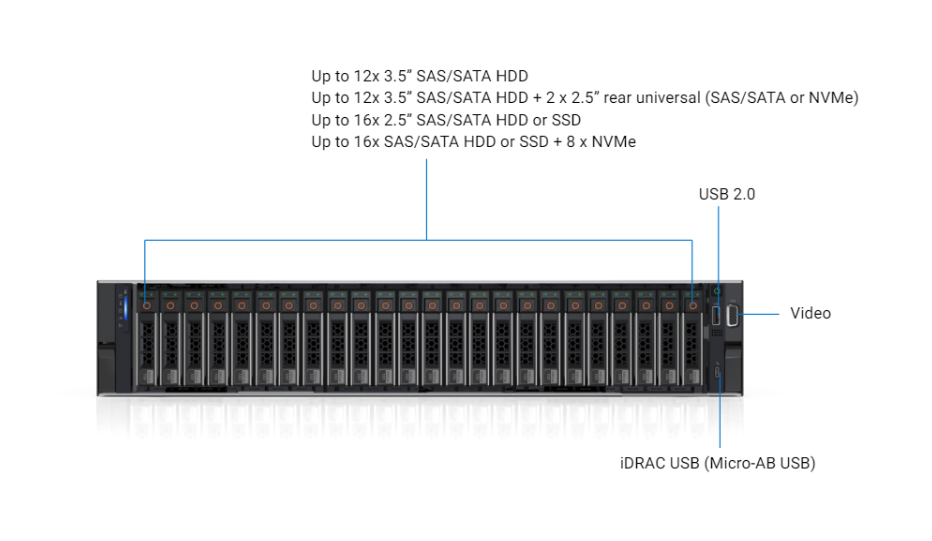

| Cổng kết nối | Front Ports |
| • 1 x iDRAC Direct (Micro-AB USB) port | |
| • 1 x USB 2.0 | |
| • 1 x VGA | |

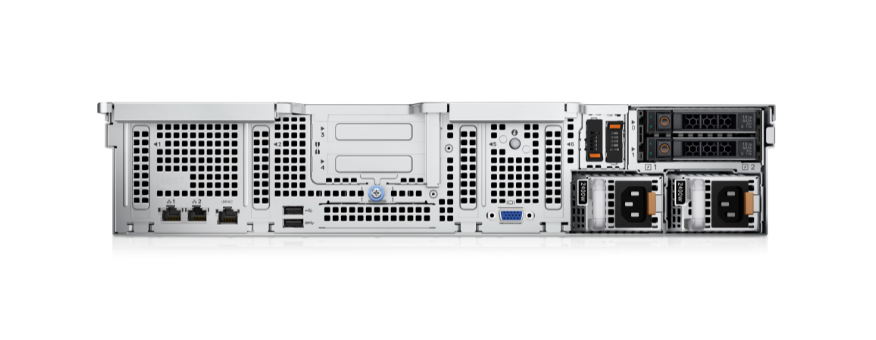

| Rear Ports | |
| • 1 x USB 2.0 | |
| • 1 x Serial (optional) | |
| • 2 x Ethernet | |
| • 1 x USB 3.0 | |
| • 1 x VGA | |
| Internal Ports | |
| • 1 x USB 3.0 (optional) | |
| Quản lý hệ thống | iDRAC9 |
| iDRAC Direct | |
| iDRAC Service Module | |
| iDRAC RESTful with Redfish | |
| Quick Sync 2 wireless module | |
| OpenManage Software | OpenManage Enterprise |
| OpenManage Power Manager plugin | |
| OpenManage SupportAssist plugin | |
| OpenManage Update Manager plugin | |
| OpenManage Mobile | |
| OpenManage Integrations: | |
| • BMC Truesight | |
| • Microsoft System Center | |
| • Red Hat Ansible Modules | |
| • VMware vCenter and vRealize Operations Manager | |
| OpenManage Connections: | |
| • IBM Tivoli Netcool/OMNIbus | |
| • IBM Tivoli Network Manager IP Edition | |
| • Micro Focus Operations Manager | |
| • Nagios Core | |
| • Nagios XI | |
| Bảo mật | Cryptographically signed firmware |
| Secure Boot | |
| Secure Erase | |
| Silicon Root of Trust | |
| System Lockdown (requires iDRAC9 Enterprise or Datacenter) | |
| TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Kích thước / trọng lượng | 2U rack |
| Height: 86.8 mm (3.41 inches) | |
| Width: 482 mm (18.97 inches) | |
| Depth: 707.78 mm (27.85 inches) – without bezel / 721.62 mm (28.4 inches) – with bezel | |
| Weight: 24 (16 SAS/SATA + 8 NVMe) x 2.5-inch: 23.84 kg (52.55 lb) 8x 2.5-inch: 20.44 kg (45.06 lb) 12x 3.5-inch: 28.76 kg (63.40 lb) 16x 2.5-inch: 21.94 kg (48.36 lb) 8x 3.5-inch: 24.80 kg (54.67 lb) No backplane configuration: 18.54 kg (40.87 lb) | |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS |
| Citrix Hypervisor | |
| Microsoft Windows Server with Hyper-V | |
| Red Hat Enterprise Linux | |
| SUSE Linux Enterprise Server | |
| VMware ESXi | |
| Thông tin khác | |
