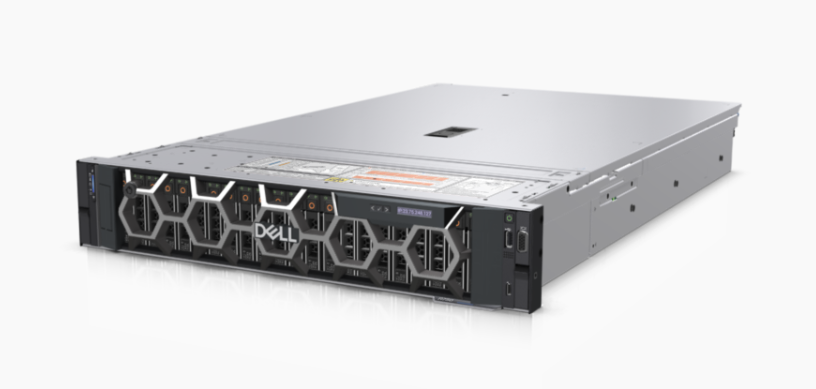

Máy chủ Dell PowerEdge R750 Chassis 24 x 2.5"/ H755/ Silver 4310 2.1G, 12C/24T/ 16GB/ 1.2TB
Tốc độ CPU: Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) Dung lượng ổ cứng: 2TB NLSAS Bộ nhớ RAM: 16GB DDR4 Ổ đĩa quang: DVD-ROM Network (RJ-45): 2 x 1GbE LOM Raid: PERC H755 Adapter Nguồn: Dual 800W PSU (2/2) Kiểu dáng: Rack
Tình trạng: Đặt hàng
Thương hiệu: Dell
Loại sản phẩm: Máy chủ
Liên hệ
Kiểu dáng
| Thương hiệu | DELL |
| Bảo hành | ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s) |
| Thông tin chung | |
| Tổng quan | Dell PowerEdge R750 Chassis 24 x 2.5" |
| Cấu hình chi tiết | |
| Bộ vi xử lý | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor | |
| Bộ nhớ chính (RAM) | 1x 16GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8 |

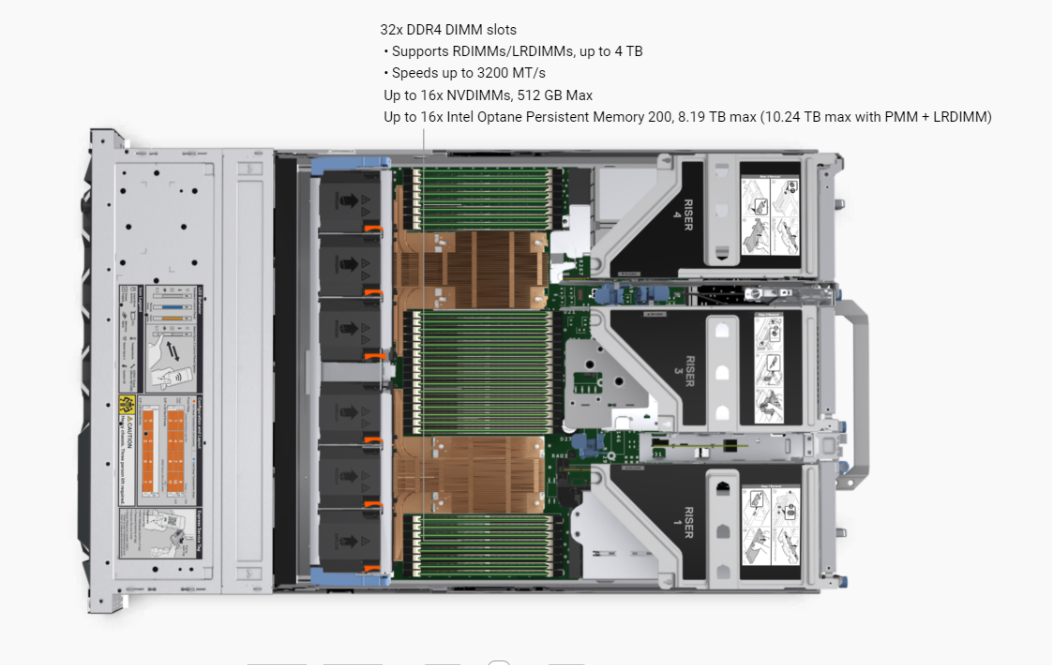

| 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only | |
| Ổ đĩa (HDD/SSD) | 1x 2TB 7.2K RPM NLSAS ISE 12Gbps 512n 3.5in Hard Drive |

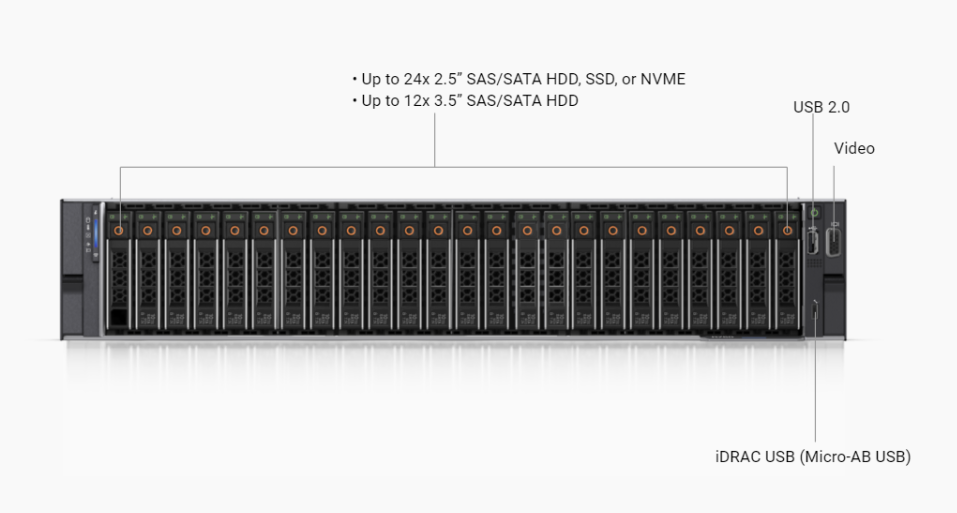

| Front bays: Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB | |
| Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB | |
| Card Raid/ Hỗ trợ | Internal controllers: PERC H755 |
| PERC H345, PERC H745, PERC H755N, HBA355i, S150 | |
| Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB | |
| Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB | |
| External PERC (RAID): PERC H840, HBA355E | |
| Ổ Quang (ODD) | DVD-ROM |
| Nguồn | 2x 800W Platinum 100-240 VAC |
| Hot swap power supplies with full redundancy option | |
| Làm mát hệ thống | Air cooling, optional processor liquid cooling |
| • Standard fans/High performance Silver fans/High performance Gold fans | |
| • Up to six hot swap fans | |
| Card đồ họa | Integrated Matrox G200 |
| GPU Options: Up to two double-width 300 W, or three single-width 150 W, or six single-width 75 W accelerators | |

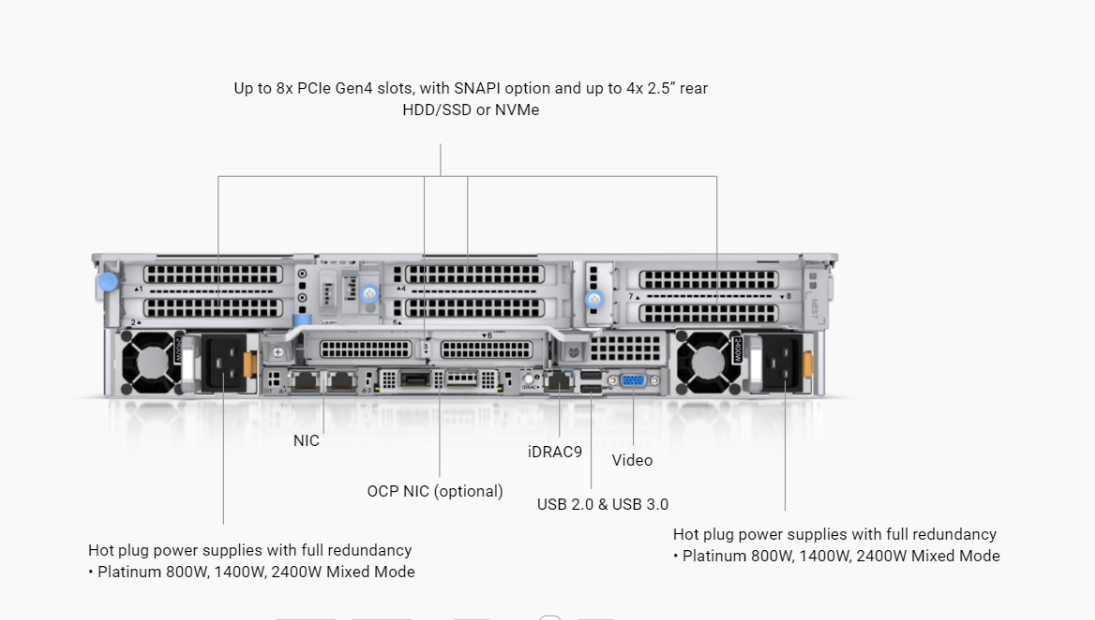

| Khe cắm mở rộng | Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules |
| Card Mạng | 2 x 1GbE LOM 1 x OCP 3.0 (x8 PCIe lanes) |
| Cổng kết nối | Front Ports |
| • 1 x Dedicated iDRAC Direct micro-USB | |
| • 1 x USB 2.0 | |
| • 1 x VGA | |

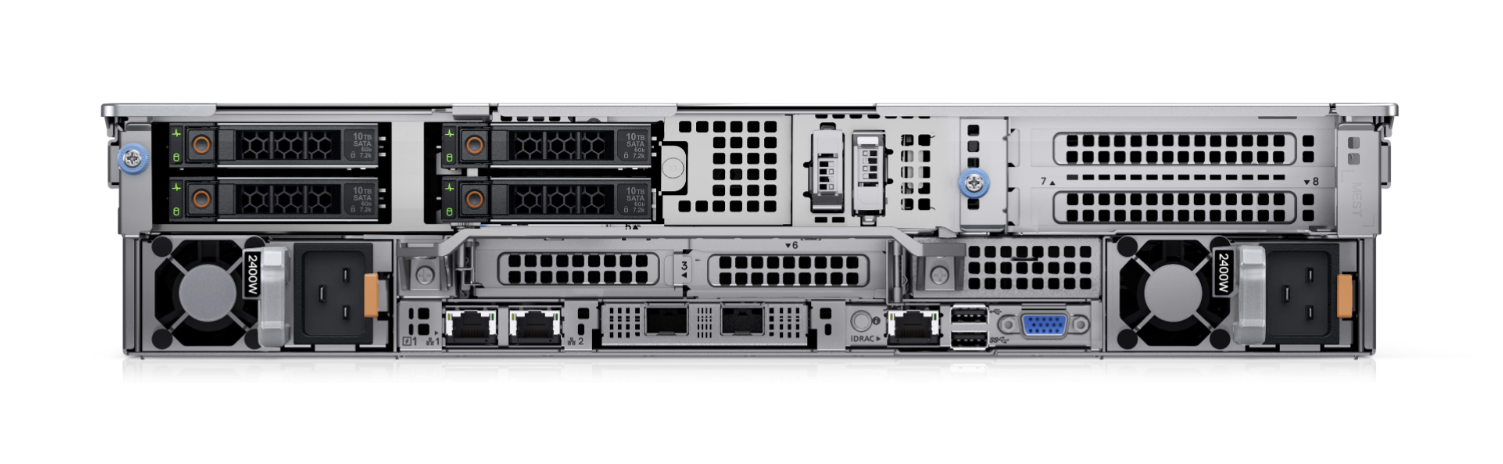

| Rear Ports | |
| • 1 x USB 2.0 | |
| • 1 x Serial (optional) | |
| • 2 x Ethernet | |
| • 1 x USB 3.0 | |
| • 1 x VGA (optional for liquid cooling configuration) | |
| Internal Ports | |
| • 1 x USB 3.0 | |
| Quản lý hệ thống | iDRAC9 |
| iDRAC Direct | |
| iDRAC Service Module | |
| iDRAC RESTful with Redfish | |
| Quick Sync 2 wireless module | |
| OpenManage Software | OpenManage Enterprise |
| OpenManage Power Manager plugin | |
| OpenManage SupportAssist plugin | |
| OpenManage Update Manager plugin | |
| OpenManage Mobile | |
| OpenManage Integrations: | |
| • BMC Truesight | |
| • Microsoft System Center | |
| • Red Hat Ansible Modules | |
| • VMware vCenter and vRealize Operations Manager | |
| OpenManage Connections: | |
| • IBM Tivoli Netcool/OMNIbus | |
| • IBM Tivoli Network Manager IP Edition | |
| • Micro Focus Operations Manager | |
| • Nagios Core | |
| • Nagios XI | |
| Bảo mật | Cryptographically signed firmware |
| Secure Boot | |
| Secure Erase | |
| Silicon Root of Trust | |
| System Lockdown (requires iDRAC9 Enterprise or Datacenter) | |
| TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Kích thước / trọng lượng | 2U rack |
| Height: 86.8 mm (3.41 inches) | |
| Width: 482 mm (18.97 inches) | |
| Depth: 758.3 mm (29.85 inches) - without bezel / 772.14 mm (30.39 inches) - with bezel | |
| Weight: 12x 3.5-inch chassis: 35.3 kg 8x 2.5-inch chassis: 29.6 Kg 16x 2.5-inch chassis: 32.6 kg 24x 2.5-inch chassis: 35.2 kg No drive chassis: 27.7 kg | |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS |
| Citrix Hypervisor | |
| Microsoft Windows Server with Hyper-V | |
| Red Hat Enterprise Linux | |
| SUSE Linux Enterprise Server | |
| VMware ESXi | |
| Thông tin khác | |
