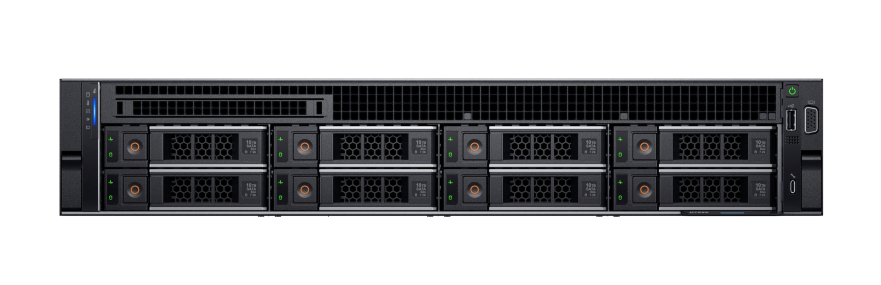

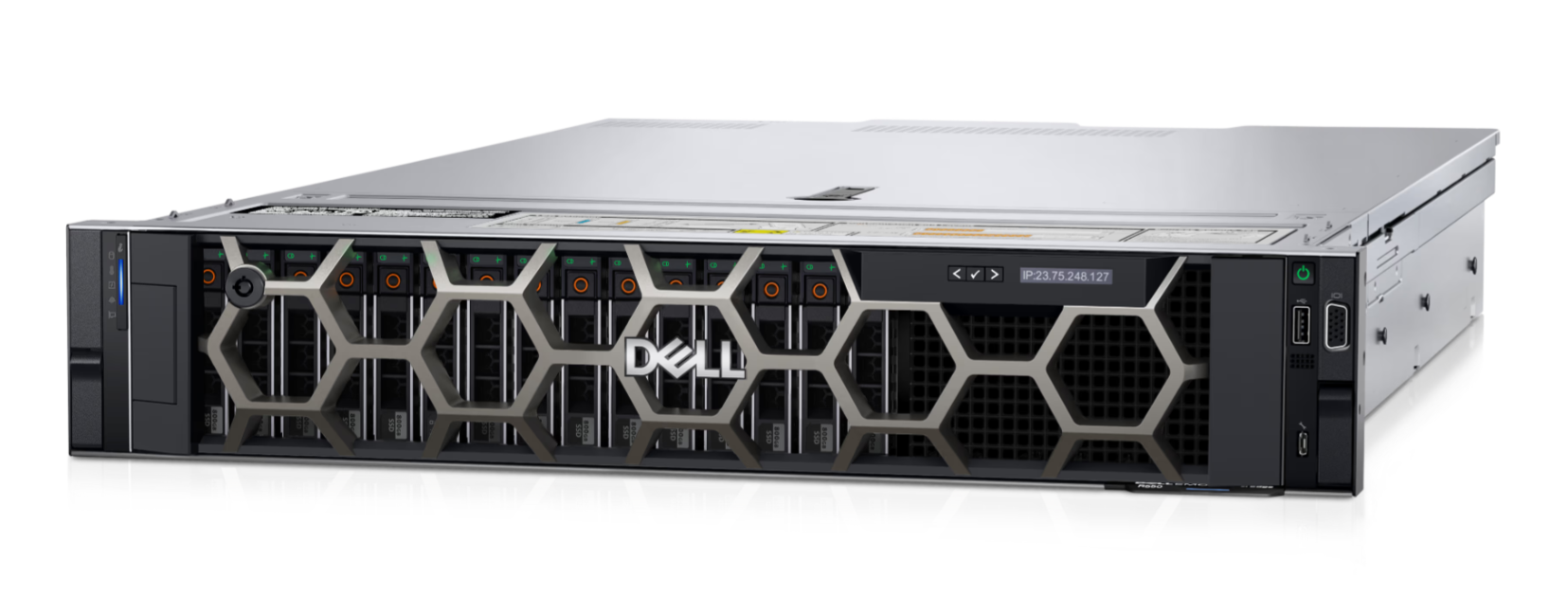

Máy chủ Dell PowerEdge R550 Chassis 8 x 3.5"/ H755/ Silver 4310 2.1G, 12C/24T/ 16GB/ 2TB
Tốc độ CPU: Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) Dung lượng ổ cứng: 2TB NLSAS Bộ nhớ RAM: 16GB DDR4 Ổ đĩa quang: DVD+/-RW Network (RJ-45): 2 x 1GbE LOM Raid: PERC H755 Adapter Nguồn: Dual 800W PSU (2/2) Kiểu dáng: Rack
Tình trạng: Đặt hàng
Thương hiệu: Dell
Loại sản phẩm: Máy chủ
Liên hệ
Kiểu dáng
| Thương hiệu | DELL |
| Bảo hành | ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s) |
| Thông tin chung | |
| Tổng quan | Dell PowerEdge R550 Chassis 8 x 3.5" |
| Cấu hình chi tiết | |
| Bộ vi xử lý | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor | |
| Bộ nhớ chính (RAM) | 1x 16GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8 |
| 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s | |
| Ổ đĩa (HDD/SSD) | 1x 2TB 7.2K RPM NLSAS ISE 12Gbps 512n 3.5in Hard Drive |
| Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB | |
| Card Raid/ Hỗ trợ | Internal controllers: PERC H755 |
| PERC H345, PERC H355, HBA355i, PERC H745, S150 | |
| • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2x M.2 SSDs or USB | |
| • External PERC (RAID): PERC H840 | |
| • External HBA (non-RAID) HBA355e | |
| Ổ Quang (ODD) | DVD+/-RW |
| Nguồn | 2x 800W Platinum 100-240 VAC |
| Hot swap power supplies with full redundancy option | |
| Làm mát hệ thống | Air cooling |
| • Standard (STD) fans | |
| • Up to five cabled fans | |
| Card đồ họa | Integrated Matrox G200 |
| GPU Options: Not supported | |
| Khe cắm mở rộng | 3 x PCIe Gen4 slots + 1 x PCIe Gen3 slot • 3 x16 Gen4 low profile • 1 x8 Gen3 (x4 lane) low profile |
| Card Mạng | 2 x 1GbE LOM 1 x OCP 3.0 |

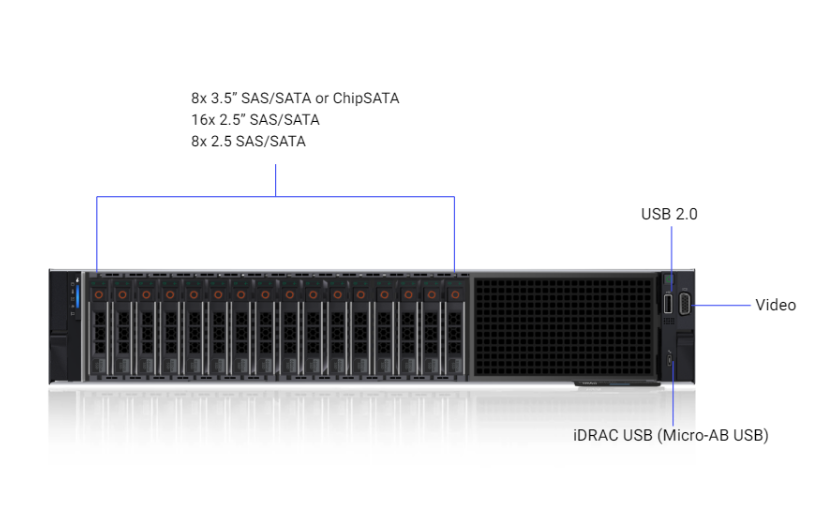

| Cổng kết nối | Front Ports |
| • 1 x Dedicated iDRAC Direct micro-USB | |
| • 1 x USB 3.0 | |
| • 1 x VGA | |

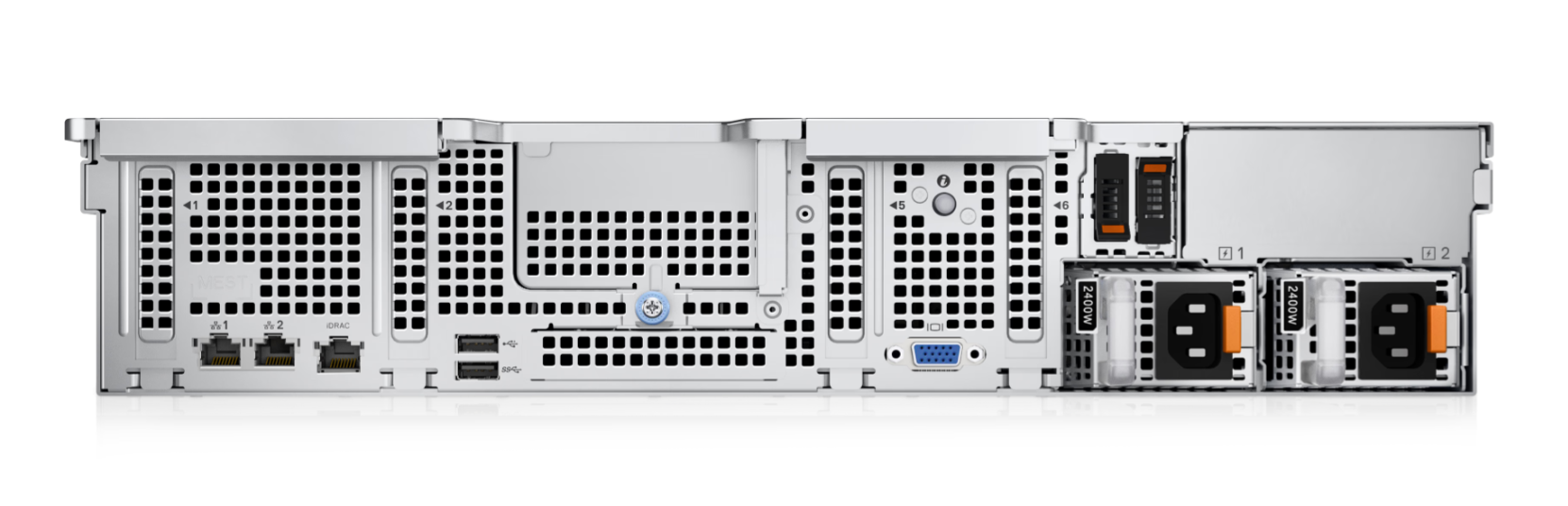

| Rear Ports | |
| • 1 x USB 2.0 | |
| • 1 x Serial (optional) | |
| • 1 x iDRAC ethernet port | |
| • 1 x USB 3.0 | |
| • 1 x VGA | |
| Internal Ports | |
| • 1 x USB 3.0 (optional) | |
| Quản lý hệ thống | iDRAC9 |
| iDRAC Direct | |
| iDRAC Service Module | |
| iDRAC RESTful with Redfish | |
| Quick Sync 2 wireless module | |
| OpenManage Software | OpenManage Enterprise |
| OpenManage Power Manager plugin | |
| OpenManage SupportAssist plugin | |
| OpenManage Update Manager plugin | |
| OpenManage Mobile | |
| OpenManage Integrations: | |
| • BMC Truesight | |
| • Microsoft System Center | |
| • Red Hat Ansible Modules | |
| • VMware vCenter and vRealize Operations Manager | |
| OpenManage Connections: | |
| • IBM Tivoli Netcool/OMNIbus | |
| • IBM Tivoli Network Manager IP Edition | |
| • Micro Focus Operations Manager | |
| • Nagios Core | |
| • Nagios XI | |
| Bảo mật | Cryptographically signed firmware |
| Secure Boot | |
| Secure Erase | |
| Silicon Root of Trust | |
| System Lockdown (requires iDRAC9 Enterprise or Datacenter) | |
| TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Kích thước / trọng lượng | 2U rack |
| Height: 86.8 mm (3.41 inches) | |
| Width: 482 mm (18.97 inches) | |
| Depth: 721.69 mm (28.72 inches) with bezel / 685.78 mm (27.00 inches) without bezel | |
| |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS |
| Citrix Hypervisor | |
| Microsoft Windows Server with Hyper-V | |
| Red Hat Enterprise Linux | |
| SUSE Linux Enterprise Server | |
| VMware ESXi | |
| Thông tin khác | |
