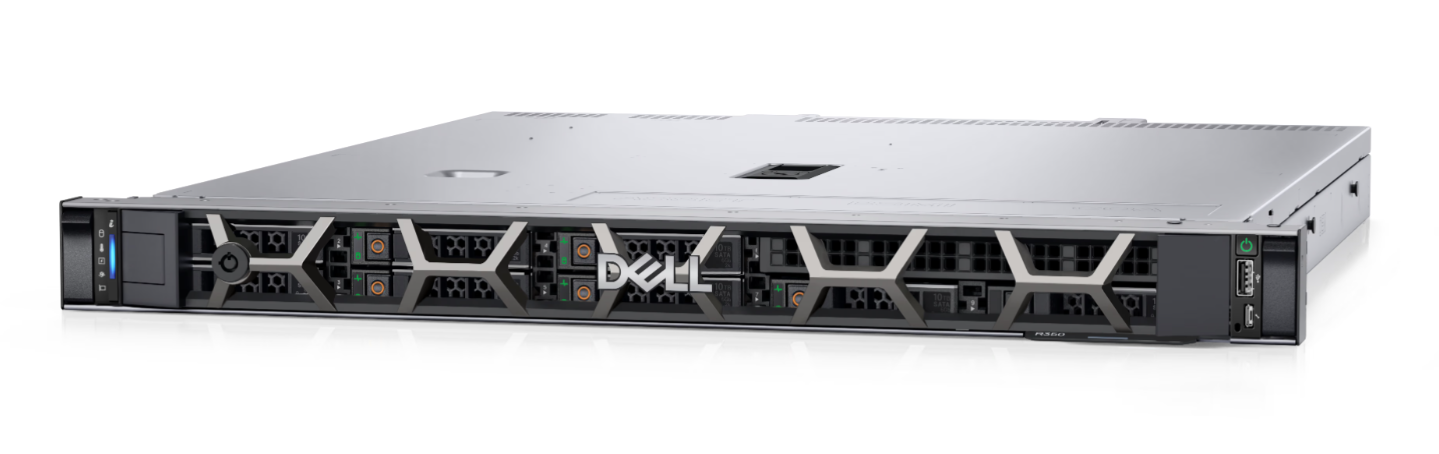

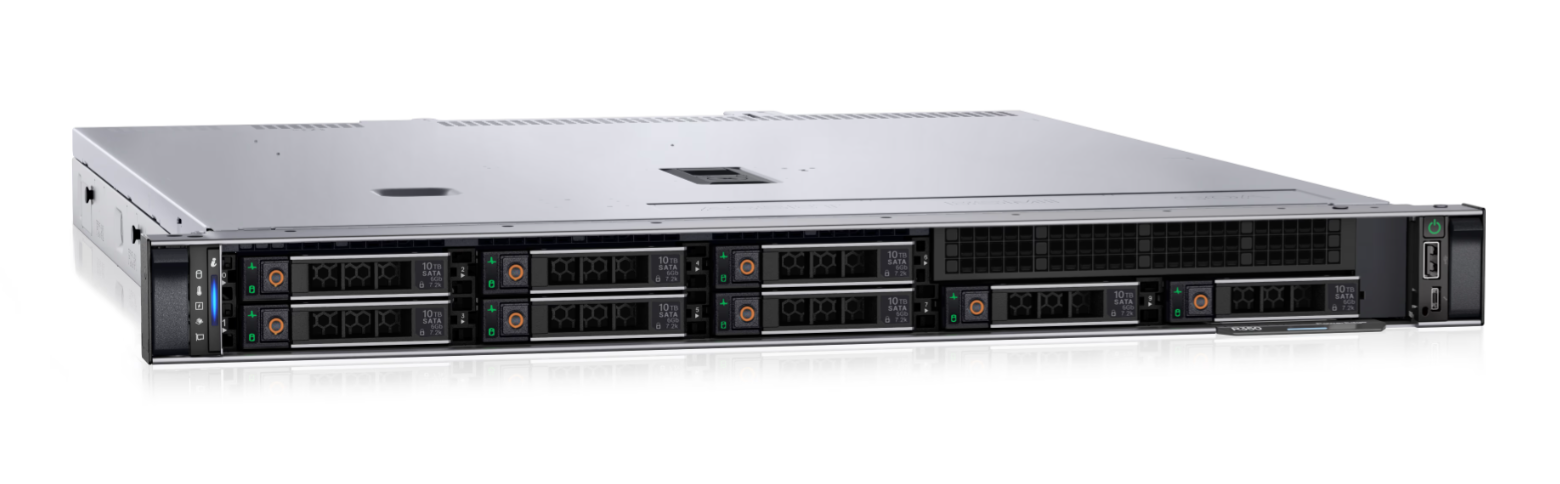

Máy chủ Dell PowerEdge R350 Chassis 8 x 2.5"/ H755/ E-2334 3.4GHz (4C/8T)/ 16GB/ 600GB
Tốc độ CPU: Intel Xeon E-2334 3.4GHz, 8M cache, 4C/8T, Turbo (65W)
Dung lượng ổ cứng: 600GB SAS
Bộ nhớ RAM: 16GB DDR4
Ổ đĩa quang: DVD-ROM
Network (RJ-45): 2 x 1GbE LOM
Raid: PERC H755 Adapter
Nguồn: Single 600W PSU (1/2)
Kiểu dáng: Rack
Tình trạng: Đặt hàng
Thương hiệu: Dell
Loại sản phẩm: Máy chủ
Liên hệ
Kiểu dáng
Thương hiệu | DELL |
Bảo hành | ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s) |
Thông tin chung | |
Tổng quan | Dell PowerEdge R350 Chassis 8 x 2.5" |
Cấu hình chi tiết | |
Bộ vi xử lý | Intel Xeon E-2334 3.4GHz, 8M cache, 4C/8T, Turbo (65W) |
Bộ nhớ chính (RAM) | 1x 16GB DDR4 UDIMM, 3200MT/s |
Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only | |
Ổ đĩa (HDD/SSD) | 1x 600GB SAS 10k 512n 2.5in Hot-Plug |
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB | |
Card Raid/ Hỗ trợ | Internal controllers: PERC H755 |
H345, H355, HBA355i, S150 | |
• Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs | |
• External HBAs (non-RAID): HBA355e | |
Ổ Quang (ODD) | DVD-ROM |
Nguồn | 1x 600W Platinum 100-240 VAC |
Hot swap power supplies with full redundancy option | |
Làm mát hệ thống | Air cooling |
Up to four fans with full redundancy | |
Card đồ họa | Integrated Matrox G200 |
Khe cắm mở rộng | 3 PCIe slots: • 1x8 Gen4 (x16 connector) low profile, half length • 1x8 Gen4 (x8 connector) low profile, half length • 1x8 Gen4 (x8 connector) for dedicated PERC onl |
Card Mạng | 2 x 1GbE LOM |
Cổng kết nối | Front Ports |
• 1 x iDRAC Direct (Micro-AB USB) port | |
• 1 x USB 2.0 | |

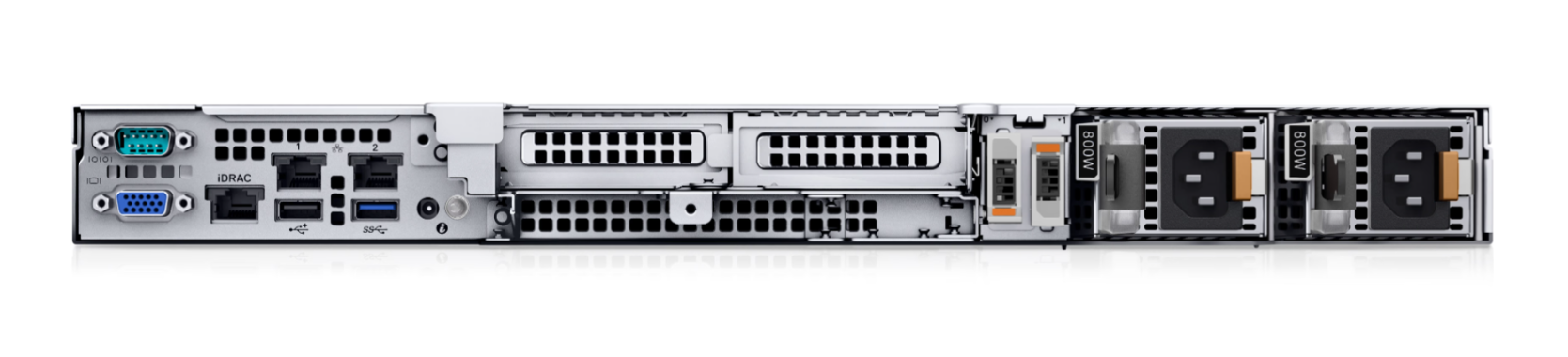

Rear Ports | |
• 1 x USB 2.0 | |
• 1 x iDRAC ethernet port | |
• 1 x USB 3.0 | |
• 1 x VGA | |
• 1 x Serial port | |
Internal Ports | |
• 1 x USB 3.0 (optional) | |
Quản lý hệ thống | iDRAC9 |
iDRAC Direct | |
iDRAC Service Module | |
iDRAC RESTful with Redfish | |
OpenManage Software | OpenManage Enterprise |
OpenManage Power Manager plugin | |
OpenManage SupportAssist plugin | |
OpenManage Update Manager plugin | |
OpenManage Mobile | |
OpenManage Integrations: | |
• BMC Truesight | |
• Microsoft System Center | |
• Red Hat Ansible Modules | |
• VMware vCenter and vRealize Operations Manager | |
OpenManage Connections: | |
• IBM Tivoli Netcool/OMNIbus | |
• IBM Tivoli Network Manager IP Edition | |
• Micro Focus Operations Manager | |
• Nagios Core | |
• Nagios XI | |
Bảo mật | Cryptographically signed firmware |
Secure Boot | |
Secure Erase | |
Silicon Root of Trust | |
System Lockdown (requires iDRAC9 Enterprise or Datacenter) | |
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
Kích thước / trọng lượng | 1U rack |
Height: 42.8 mm (1.68 inches) | |
Width: 482 mm (18.97 inches) | |
Depth: 598.64 mm (23.56 inches) with bezel / 585 mm (23.03 inches) without bezel | |
Weight: 29.98 lbs. (13.6 kg) | |
Operating System and Hypervisors | Canonical Ubuntu Server LTS |
Citrix Hypervisor | |
Microsoft Windows Server with Hyper-V | |
Red Hat Enterprise Linux | |
SUSE Linux Enterprise Server | |
VMware ESXi (support only from Dec’21) | |
